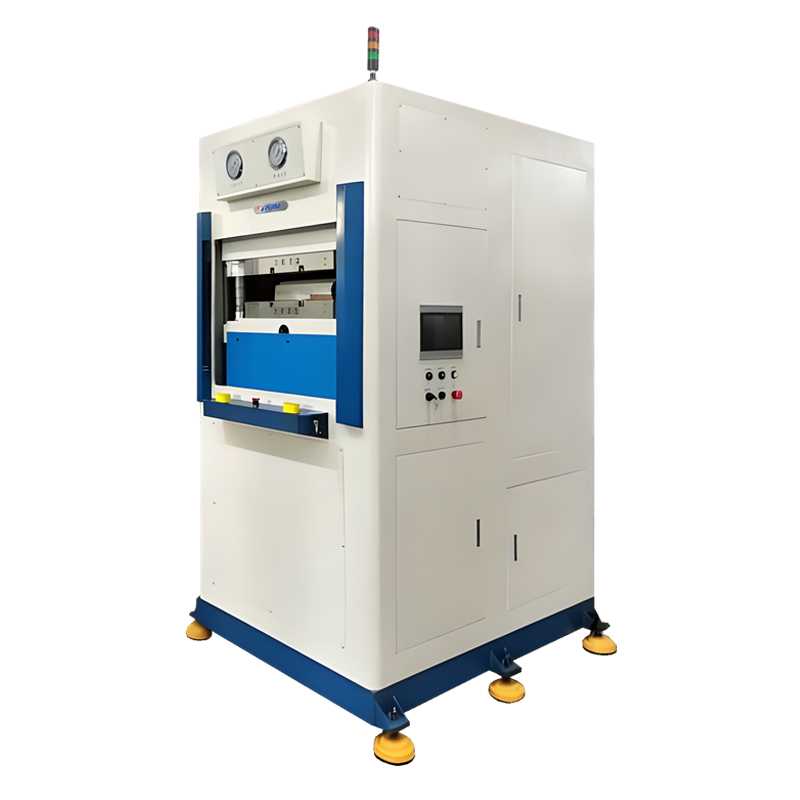

Custom Servo Hydraulic Vacuum Hot Press | Full-Automatic Vacuum Thermal Forming Machine
1. Product Highlights
Product Name: Custom Non-Standard Servo Hydraulic Vacuum Hot Press, Full-Automatic Vacuum Thermal Compounding & Forming Machine
Core Advantages: Vacuum Bubble-Free Forming | Precise Temp & Pressure Control | Servo Energy Saving | High Uniform Lamination | Full Data Traceability | Low Noise Operation
Application Scenarios: Vacuum lamination, bubble-free thermal bonding, defoaming curing, composite compounding, film pressing and high-precision vacuum hot forming
2. Product Overview
This custom servo hydraulic vacuum hot press integrates vacuum defoaming technology, servo hydraulic pressure control and intelligent constant temperature heating system. It eliminates common defects of conventional hot presses such as air bubbles, delamination, uneven bonding and low yield caused by residual air. Equipped with a high-precision vacuum pumping system and closed-loop servo control, it realizes accurate adjustment of vacuum degree, pressure, temperature and holding time. Fully customizable and MES-compatible, it delivers bubble-free, high-uniformity thermal forming quality, ideal for high-standard lamination and curing processes for high-end materials.
3. Core Advantages
1. Vacuum Bubble-Free Forming & High Yield
Built-in high-efficiency vacuum system thoroughly extracts internal air before hot pressing, completely avoiding bubble defects, delamination and hollow bonding. Combined with balanced heating and uniform pressure output, it ensures flat, smooth and consistent product surface, greatly improving finished product yield and appearance quality.
2. Precise Synced Vacuum, Temp & Pressure Control
Supports independent and linkage control of vacuum degree, hot pressing temperature and hydraulic pressure. The servo hydraulic system provides stable constant pressure output without fluctuation, while the constant-temperature heating plate ensures uniform heat distribution. It meets ultra-precision forming requirements for thin films, fragile materials and multi-layer composite products.
3. Servo Energy-Saving & Stable Operation
Adopts on-demand servo operation mode to reduce idle power consumption by 30%-50%. The vacuum pump operates intelligently according to set vacuum parameters to avoid ineffective power loss. Lower heat generation and stable hydraulic pressure extend the service life of seals, heating elements and vacuum components, reducing long-term operating costs.
4. Reinforced Vacuum Chamber & High-Temp Resistance
The whole machine features a rigid steel frame and fully sealed high-pressure vacuum chamber with optimized structural stress relief. The customized high-temperature resistant heating plate maintains stable flatness under long-term vacuum, high-temperature and high-pressure working conditions. All core sealing and electrical components are upgraded for vacuum thermal environments to ensure durable and stable operation.
5. Intelligent Data Traceability & Quality Control
Real-time monitoring and curve recording of vacuum degree, pressure, temperature and holding time. The system automatically identifies unqualified products caused by insufficient vacuum, temperature deviation and pressure instability with sound-light alarm. All process data supports storage, export and cloud synchronization, perfectly matching factory MES quality traceability systems.
6. Flexible Customization & Wide Compatibility
Fully customizable in tonnage, vacuum chamber size, heating area, temperature range and vacuum level. Optional modules include rapid cooling, multi-layer vacuum pressing, automatic door opening and automatic loading/unloading. It supports manual, semi-automatic and full-automatic modes, adapting to sample testing, small-batch trial production and large-scale standardized vacuum hot forming.
4. Technical Parameters (Fully Customizable)
Parameter Item | Specification |
Machine Pressure | 10T-500T (Customizable) |
Vacuum Degree | -0.08~-0.098MPa (Customizable) |
Temperature Control Range | Room Temperature - 400℃ (Customizable) |
Temperature Control Accuracy | ±3℃ |
Pressure Stability | ±1% Stable Output |
Effective Stroke | 100-800mm (Customizable) |
Holding Time | 0-999s Adjustable |
Process Storage | 100+ Preset Programs |
Operation Screen | 7/10-inch Industrial Touch Screen |
Data Functions | Curve Display, Data Export, MES Compatible |
Operation Modes | Manual / Semi-Automatic / Full-Automatic |
Safety Configuration | Light Curtain, Emergency Stop, Overload, Overheat & Vacuum Overpressure Protection |
5. Core Functions
Full Vacuum Defoaming: Pre-pumping vacuum removes internal air completely to achieve zero-bubble lamination and bonding.
Sync Temp & Pressure Control: Matched constant temperature and steady pressure ensures uniform curing and forming of composite materials.
Real-Time Data Monitoring: Dynamic curves of vacuum degree, temperature and pressure support intuitive supervision and fast debugging.
Quick Program Switching: Preset multiple vacuum hot-pressing processes for rapid product changeover and flexible production.
Full Process Traceability: Complete parameter recording and data export support high-standard factory quality management.
Modular Expansion: Optional rapid cooling, multi-layer pressing and automatic feeding systems for integrated unmanned production.
6. Application Scope
Applicable Industries: New energy batteries, FPC flexible circuits, electronic components, optical materials, automotive interiors, composite materials, medical films and high-precision manufacturing industries.
Applicable Processes: Vacuum lamination, film bonding, flexible material compounding, resin vacuum curing, bubble-free pressing, precision sheet shaping, debonding & defoaming and high-end material hot compounding processes.
7. Customization Process
1. Requirement Confirmation: Confirm vacuum degree, tonnage, temperature, chamber size and production process
2. Custom Solution Design: Provide professional vacuum system, heating and structural configuration scheme
3. Production & Calibration: Complete sealed assembly, vacuum testing and precision parameter calibration
4. Sample Testing: Free vacuum hot pressing trial production to optimize process parameters
5. Delivery & Training: installation, commissioning and operational & process guidance
6. After-sales Support: Long-term technical service and regular equipment maintenance
8. After-sales Service
✅ 1-year full machine warranty & 2-year warranty for servo, hydraulic, heating and vacuum core components
✅ Lifetime free technical support
✅ 24-hour online customer service response
✅ tooling improvement and vacuum forming process optimization solutions
